Servo CNC Turret Punch Press 300 KN Punching Capacity Low Noise High Stability

Name: Servo CNC Turret Punch Press 300 KN Punching Capacity Low Noise High Stability
Brand: D.K.HISTRON
Price: 1 USD

Buy cheap Servo CNC Turret Punch Press 300 KN Punching Capacity Low Noise High Stability product

Brand Name : D.K.HISTRON

Model Number : HC-400

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1 Set

Price : depends on model

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 50days

Packaging Details : Suitable for long distance transport

Product name : CNC turret punching machine

Power : Servo Motor

Punching Capacity : 300 KN

Max Punching Force : 200kN

Bending Material : stainless steel Aluminum

Repeatability Accuracy : ±0.05mm

Warranty Time : one year

Return Force : 100 KN

Contact Now

CNC Turret Punch Press Machine with Low Noise and High Stability

Product Features

This servo CNC turret punch press machine utilizes thick turret standard tooling and features:

Main transmission with direct drive servo motor for simple, reliable structure
Superior performance compared to hydraulic transmission systems
High-efficiency, energy-saving operation with low noise levels
High accuracy for precision manufacturing

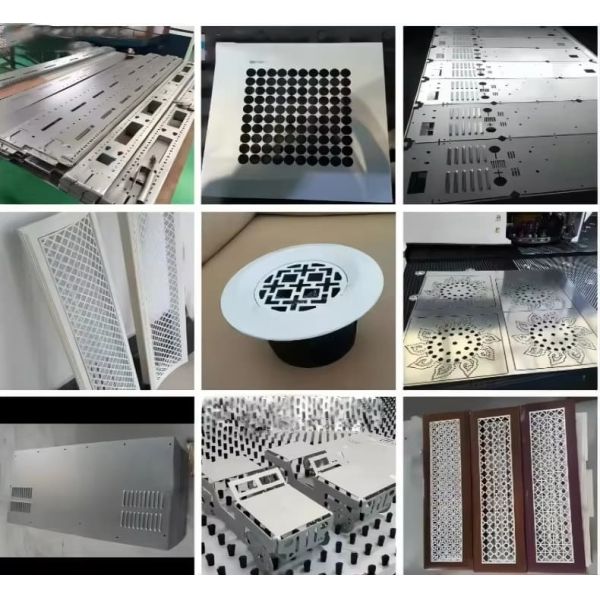

Capable of multiple processes including die-cutting, forming, beading, and lettering
300KN punching force capacity
Maximum sheet size: 5000x1250mm (with one re-positioning)
Five-axis machining (X, Y, T, Z, A)
Dadong CNC software on IEI system specifically developed for punch presses
Japan AC servo motor and amplifier unit
Nanjing Estun all-electric servo motor for punching power
O-frame steel welding frame construction
Taiwan HIWIN or German Rexroth linear guides and ball screws

Technical Specifications

Parameter	Unit	HC-300/HC-400
Punching force	KN	300/400
Frame structure		"O" type closed frame
Max. machined plate size	mm	5000x1250 \| 5000x1500 \| 5000x2000
Stamping stroke	mm	40 \| 40 \| 40
Max. diameter of one punch	mm	88.9 \| 88.9 \| 88.9
Max. punching frequency	hpm	1800 \| 1800 \| 1800
Max. processed sheet thickness	mm	6.35 \| 6.35 \| 6.35
Workstation	piece	28/32 \| 28/32 \| 28/32
Hole spacing accuracy	mm	±0.10 \| ±0.10 \| ±0.10
Max. punching frequency (1mm pitch, 6mm stroke)	hpm	800 \| 800 \| 800
Max. punching frequency (25.4mm pitch, 6mm stroke)	hpm	400 \| 400 \| 400
Max. speed of sheet movement	m/min	106 \| 106 \| 106
Number of control axes	piece	5 \| 5 \| 5
Turret speed	r/min	30 \| 30 \| 30
Maximum mass of workpiece	kg	156 \| 156 \| 156
Air supply pressure	Mpa	0.6 \| 0.6 \| 0.6
Overall dimensions (LxWxH)	mm	5200x5200x2280 \| 5500x5200x2280 \| 6400x5200x2280

Servo CNC Turret Punch Press 300 KN Punching Capacity Low Noise High Stability

Servo CNC Turret Punch Press 300 KN Punching Capacity Low Noise High Stability

Service & Support

One-year machine warranty (excluding damage from improper operation)
Complete documentation including installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists
On-site installation guidance and staff training services available

Frequently Asked Questions

What is the delivery time?

30-50 working days, based on factory production order conditions.

How to install the machine?

We provide overseas service with engineers available to guide installation and debugging at your location.

What size machine suits our needs?

We design machines according to your requirements, typically based on workpiece size, weight, and efficiency needs.

How do you control quality?

One-year warranty with 10 quality control teams checking every part from design drawings through machine completion.

What products can you buy from us?

CNC Turret Punch Press, CNC bending machine, Fiber Laser Cutting Machine, Bending Automation, Flexible Manufacturing System, Panel bender and sheet plate automatic production lines.
